SUBARU IMPREZA WRX - PRODRIVE

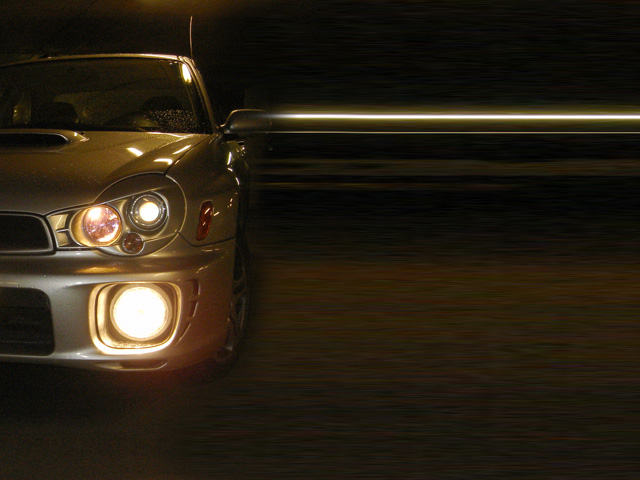

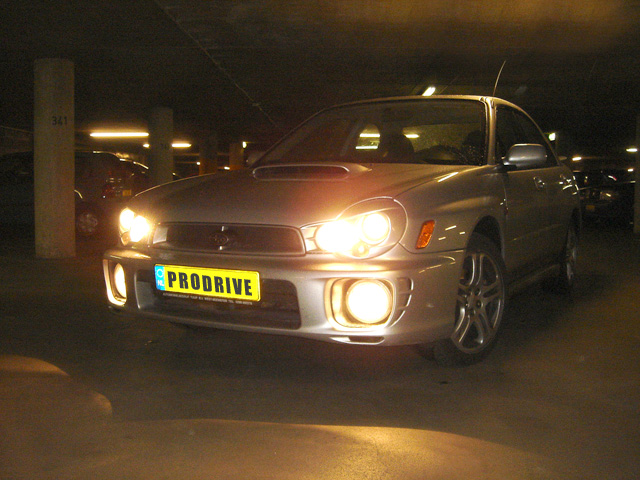

- front image with all lights on -

- front image with all lights on -


- Defi meter set - Oil pressure - Turbo pressure - Oil temperature - During the day -

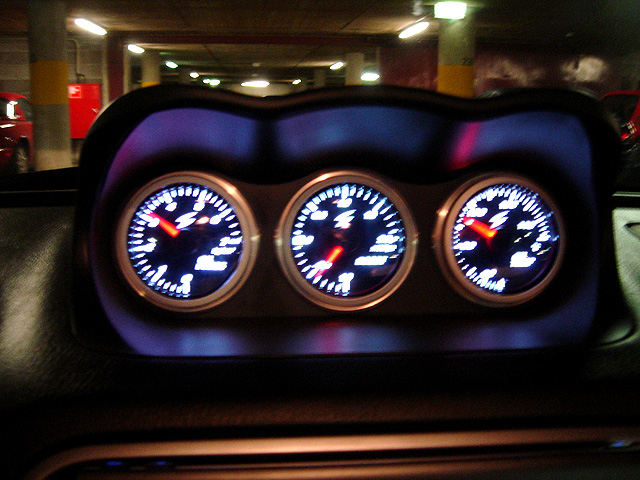

- Defi meter set - Oil pressure - Turbo pressure - Oil temperature - During the night -

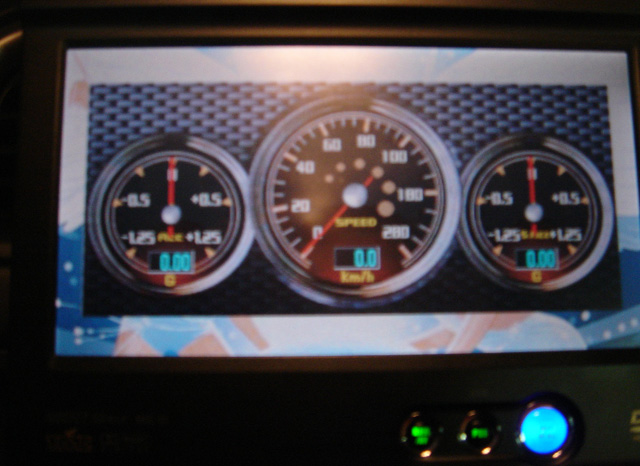

- Pioneer X1R Screen with G-force left / right - G-force acceleration - Speed -

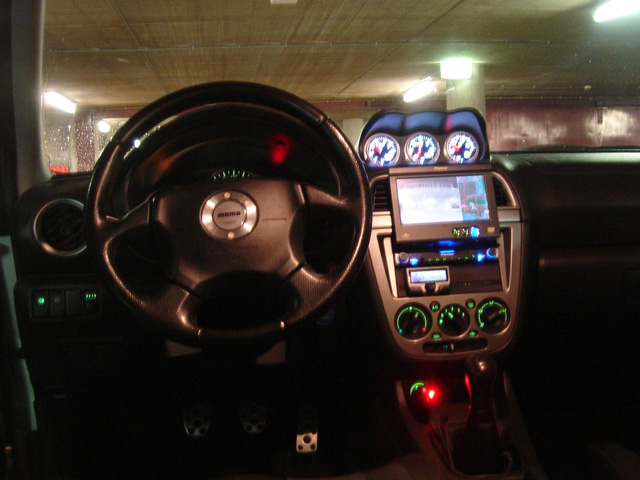

- Defi meter set - Pioneer X1R - Parrot telephone kit - IPOD mini

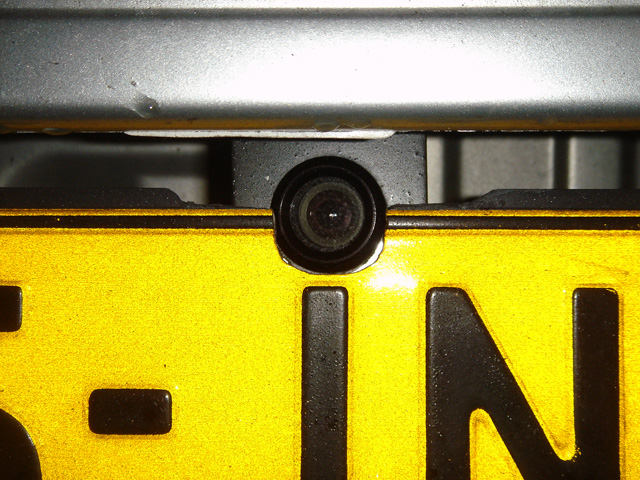

- Rear cam in number plate - vissable on screen X1R during driving -

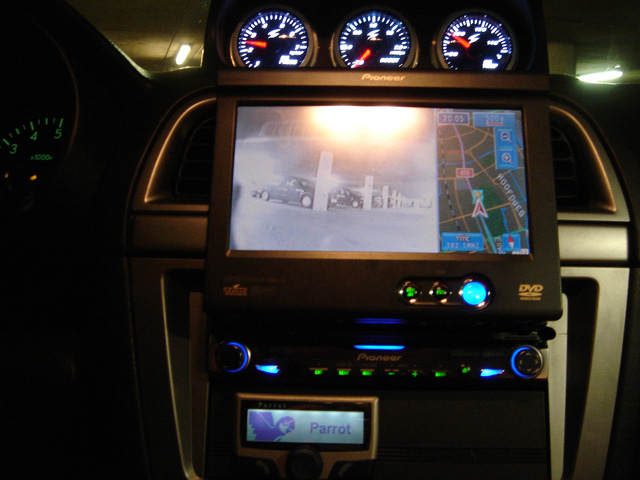

- Rear image splitscreen with navigation screen - Will be full screen in reverse gear -

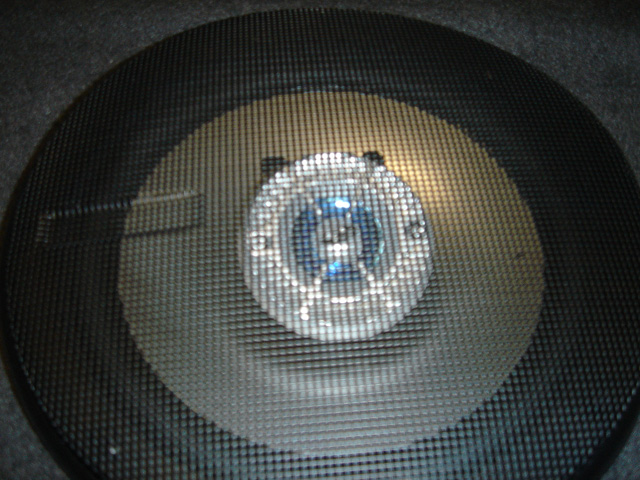

- All speakers in car with point tweeters -

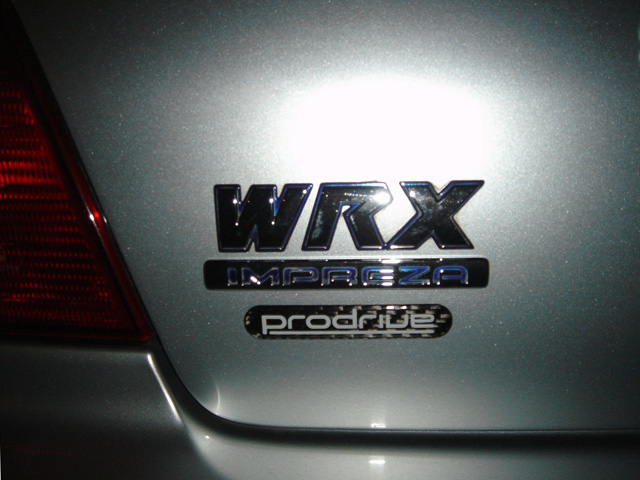

- Car logo with kevlar PRODRIVE logo-

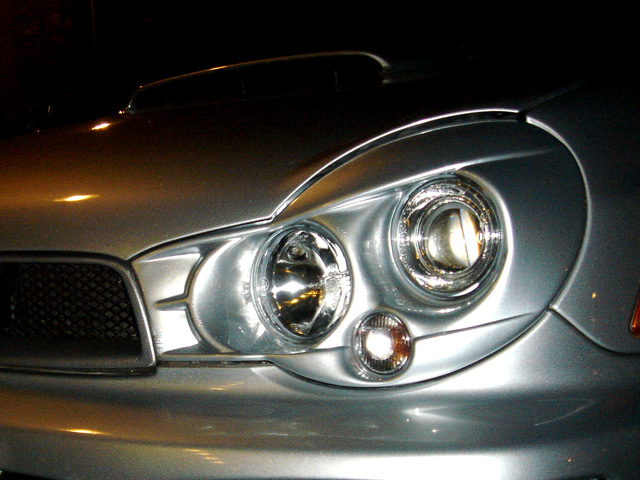

- Front headlight - prodrive style -

- Xenon lights left - Original lights right - So lets get Xenon :) -


- VF-35 Turbo (inc. adjusted wastegate)-

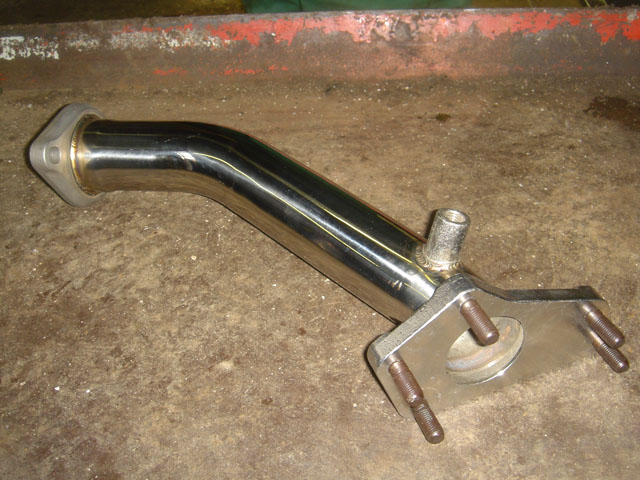

- Up pipe - Invidia -


- Invidea Uppipe + VF-35 Turbo Intergrated -

- Downpipe - Invidia - Pro drive open midpipe - Pro Drive Exhaust -

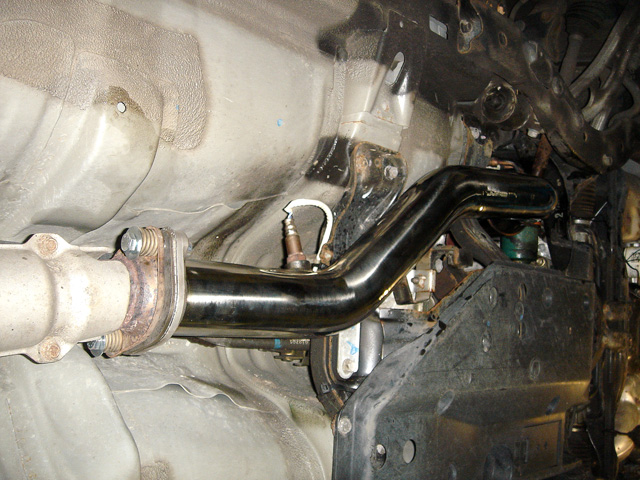

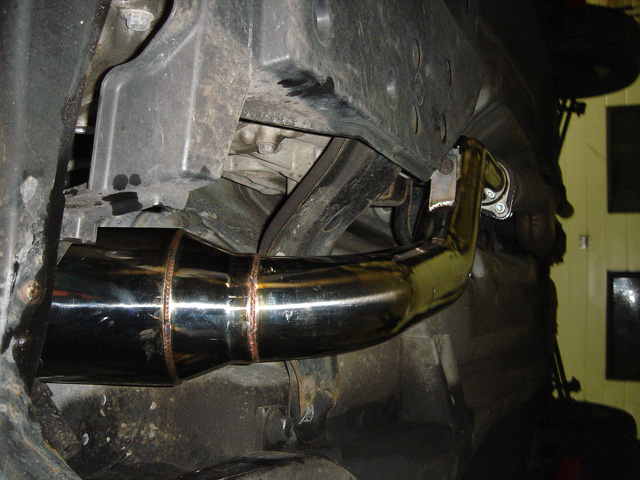

- Downpipe - Invidia -

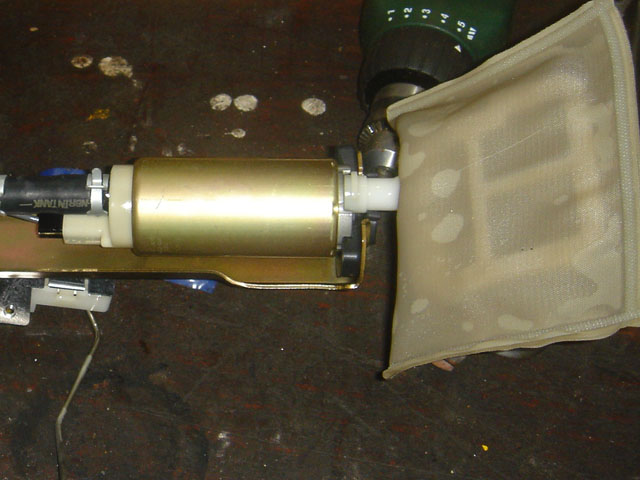

- High flow fuel pomp walbro -

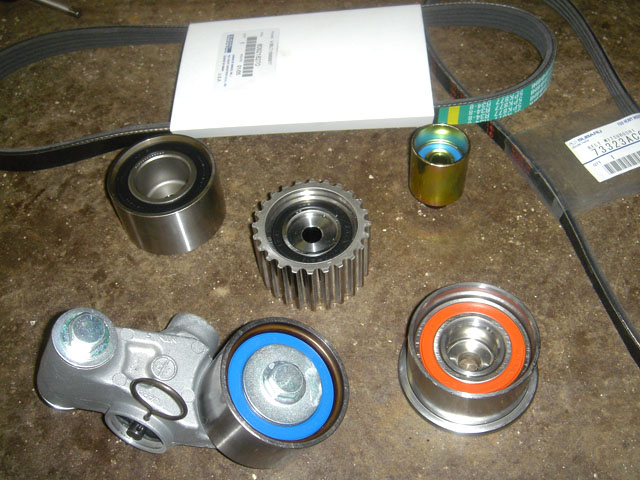

- New distribution parts -

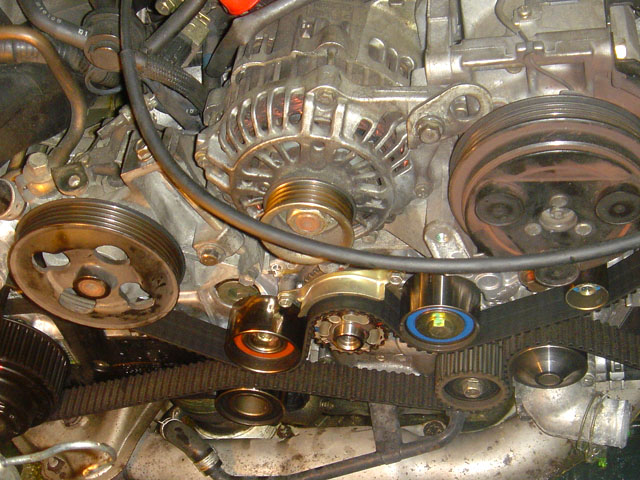

- Distribution parts on the right place -

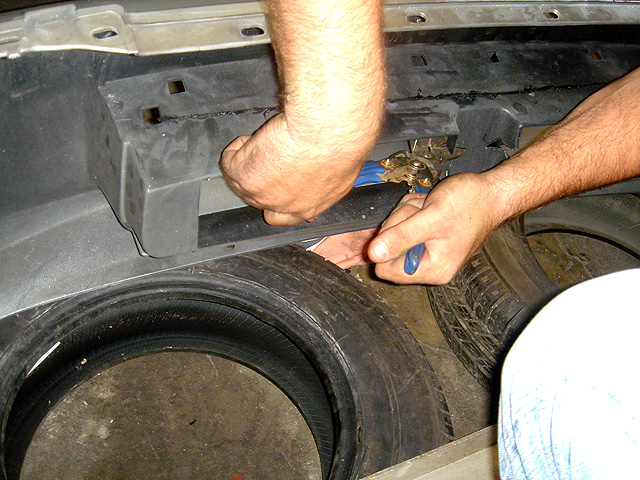

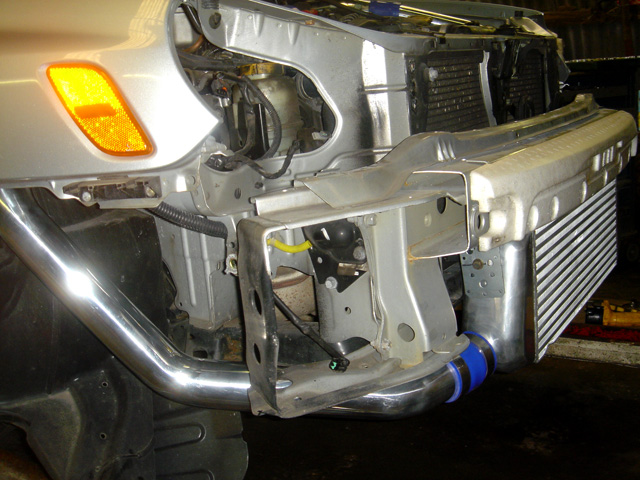

- Start intergrating Hybride-Front Mounted Intercooler (adjusting frontlip spoiler) -

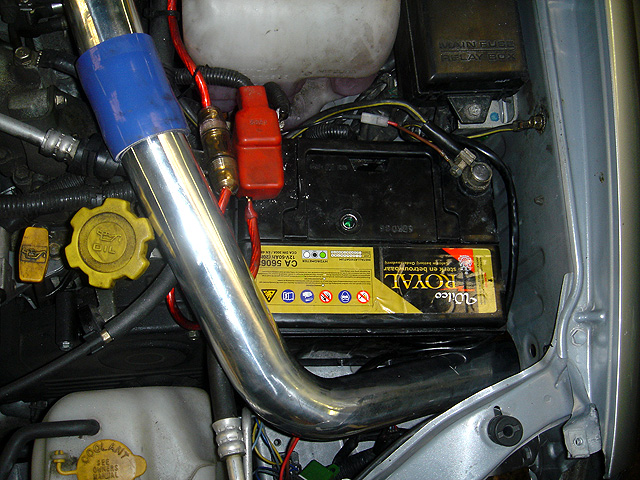

- Start intergrating Hybride - Fmic (adjusting battery 3 cm back) -

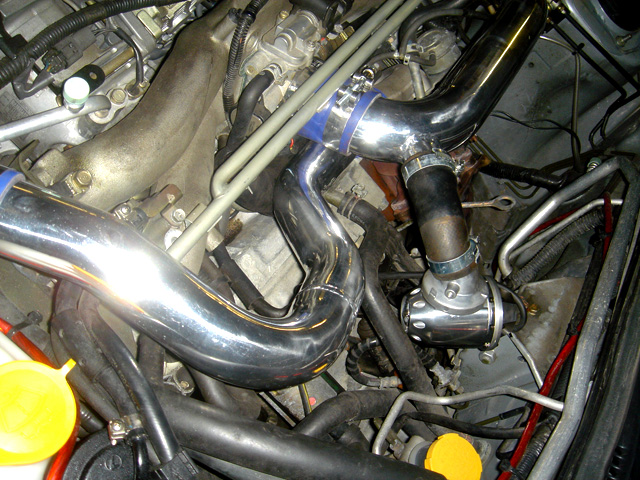

- Start intergrating Hybride - Fmic (connect all pipes to intercooler) -

- Start intergrating Hybride-Fmic (left side) -


- HKS dumpvalve -

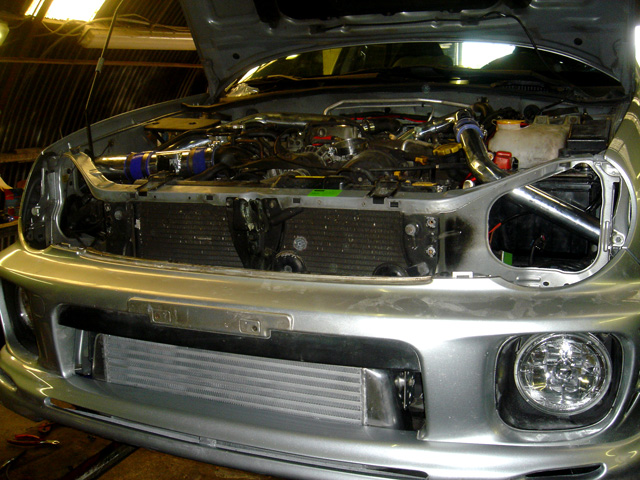

- Finished Hybride-Fmic -


- Oil cooler + 550 CC STI injectors -

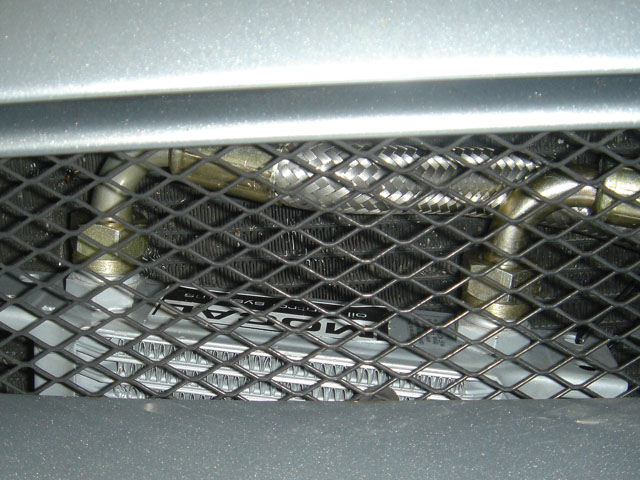

- Oil cooler finished -


- Measuring the right size for the wooden frame (4 mm) -

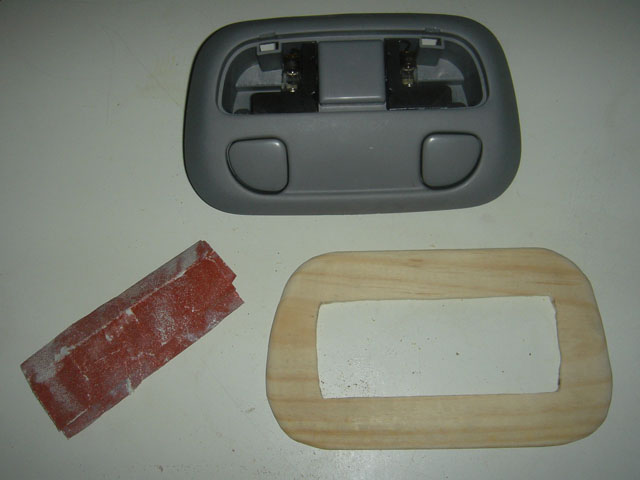

- Making the wood ft the RSM - A lot of sanding :) -

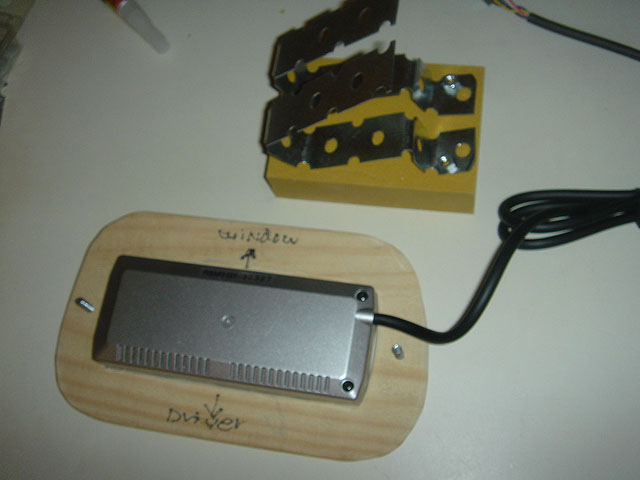

- Creating connecting plates -

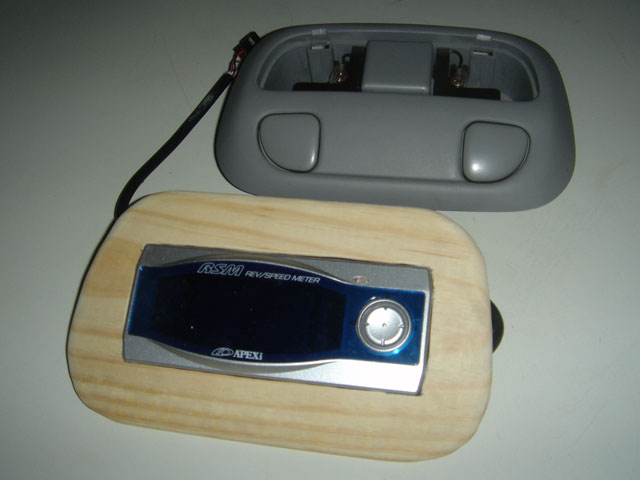

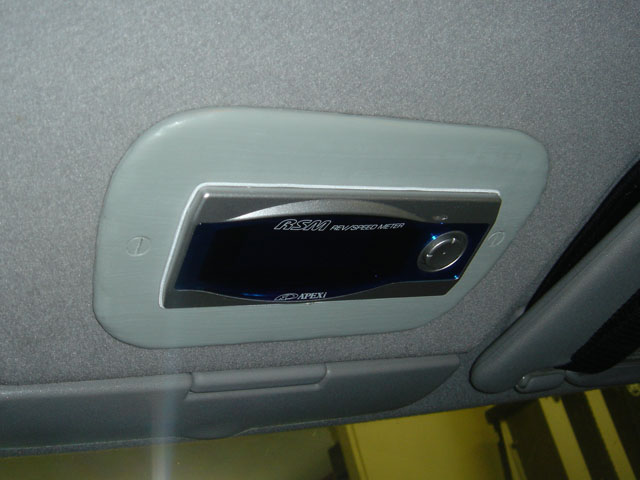

- Painted the wood and put it in the rooftop - See the result above -

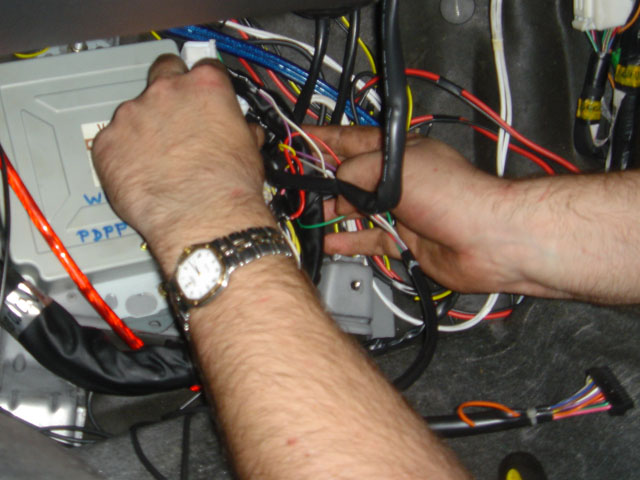

- Connecting + Wiring AVC-R & RSM -

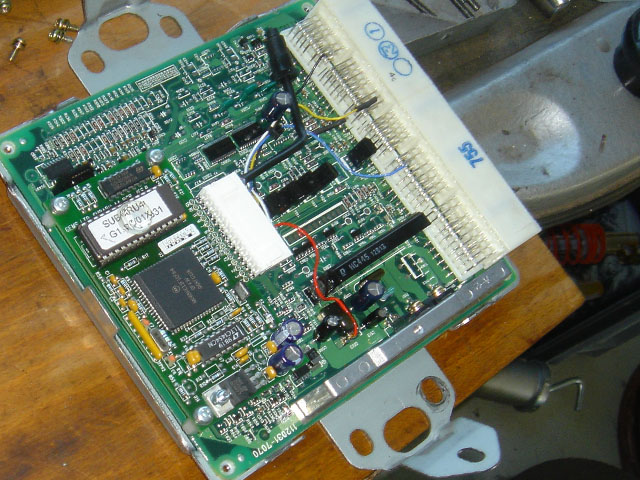

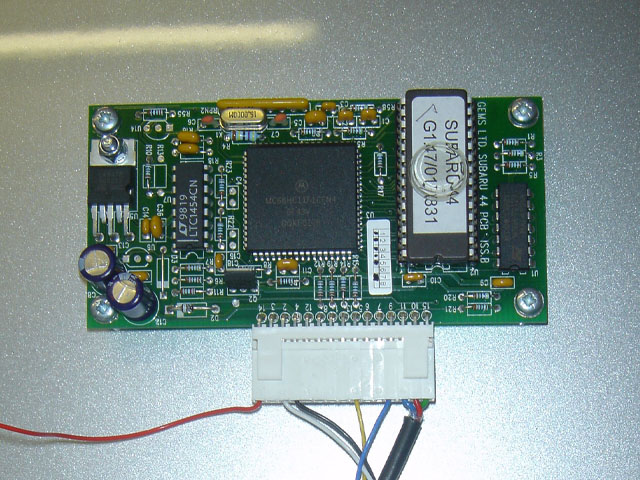

- Remove Prodrive chip from MAIN ECU -


- Disconected Prodrive chip -

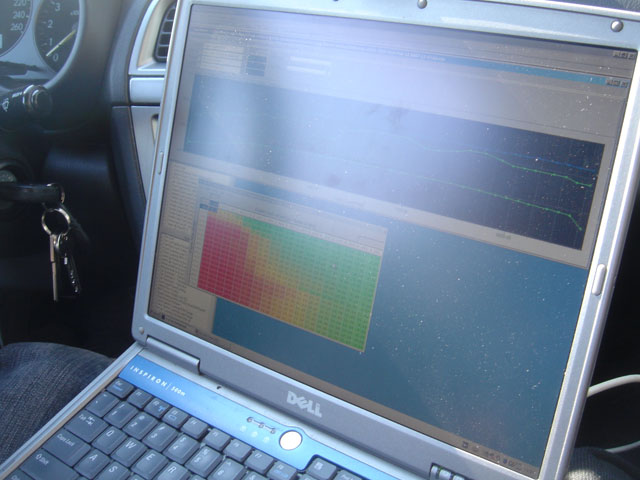

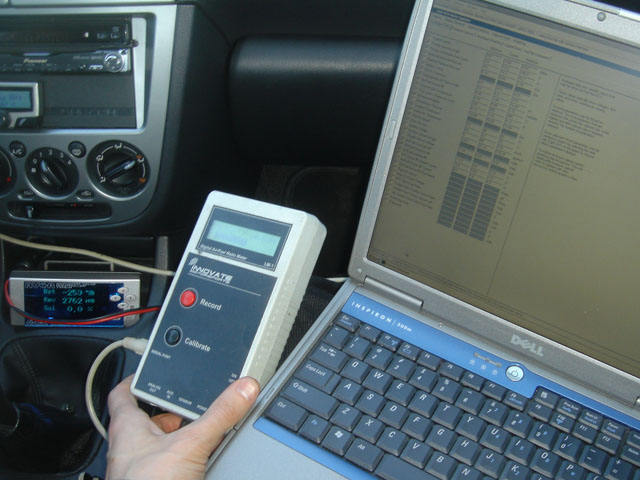

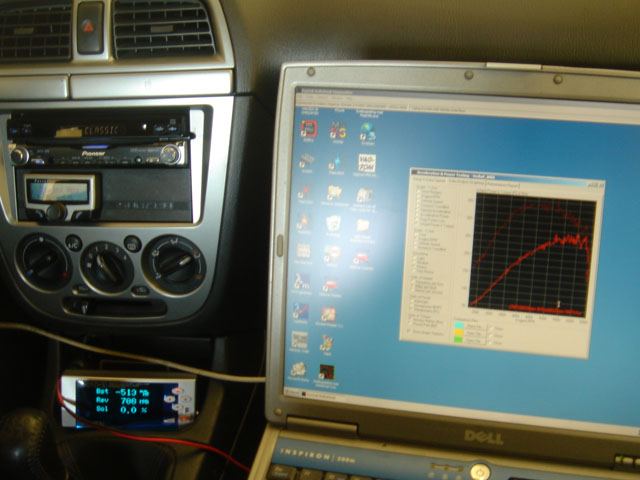

- Loading Ecutec program + Callibration AVC-R at EMS tuning -


- Ecutec program adjustments - fuel adjustments for optimal power in every gear -


- Test drive - power mapping --> 340 BHP / 450 NM at 18 degrees -

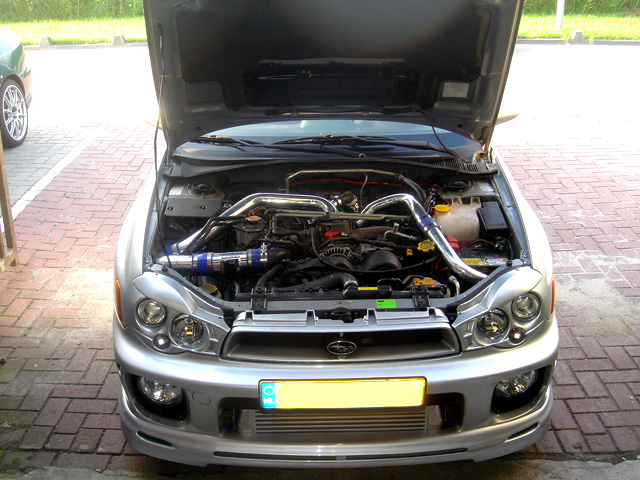

- Finished Hybride-Fmic (front-low) -


- Custom made Subaru WRX I-pod Mini skin - For I-pod connected to Pioneer X1R




Results:
- 340 BHP / 450 NM at 18 degrees

To do list (intergrate):

- Xenon 8.000 K head lights (pilot)
- PIA Lights - Ultra White
